20227 - Koster RVS tanks

20227

Description

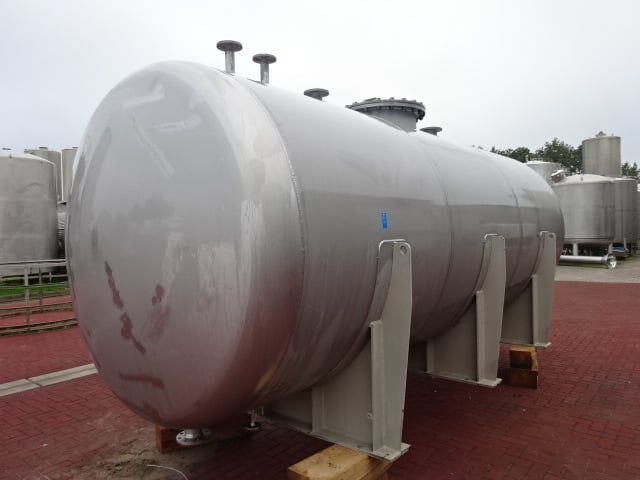

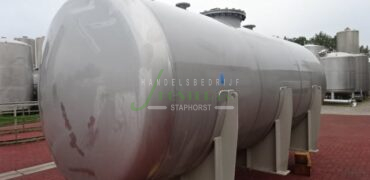

SS 304 horizontal tank


General

Year of construction

1996

State

Used

Quantity

1

Capacity size

15,500 liter

Material

SS 304

Empty weight

2,200 kg

Working pressure

3 bar

Test pressure

4.2 bar

Foundation

Consoles

Locatie

Staphorst

Dimensions

Cylindrical length

4,500 mm

Total length

5,280 mm

Outlet height

19 mm

Wall thickness bottom

7 mm

Wall thickness cylinder

5 mm

Fittings

Outlet

80 mm

Inlet

80 mm

Breather vent

125 mm

Manhole

600 mm

Place manhole

On top
